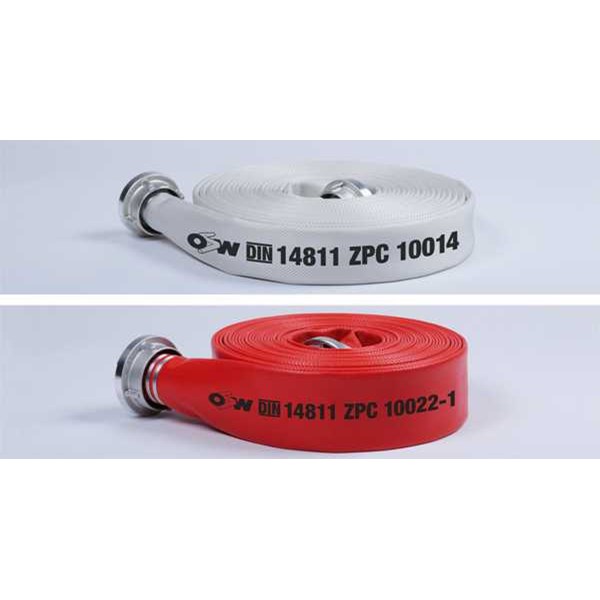

Fire Hose Syntex 500-Extra " OSW " applications * municipal fire brigades * shipboard * industrial fire brigades * refineries, irrigation construction * 100 % high tenacity polyester yarn * circular-woven twill weave, warp threads multiple twisted in special construction * high-quality, very light synthetic rubber on the basis of EPDM features * special jacket-construction for best abrasion-resistance * seawater-resistant, weather-resistant * ageing and ozone resistant * temperature range from – 40 ° C up to + 100 ° C * minimum friction loss because of very smooth inner lining * light and flexible * minimum maintenance * PU-coating on request special options * other diameters * maximum lengths up to 500 m * individual stencilling ( e. g. Company-logo or -name) * all international couplings standards approvals * DIN 14811 : 2008 class 1/ class 2 * Germanischer Lloyd * M.E.D. 96/ 98/ EC * BS 6391 Type 1 ( white) * BS 6391 Type 2 ( red coated) Technical data diameter bursting pressure working pressure weight in g in mm in inch in bar in psi in bar in psi white PU-coated 25 ( D) 1 65 945 20 290 135 145 38 1 1/ 2 65 945 20 290 210 220 45 1 3/ 4 65 945 20 290 250 265 52 ( C) 2 65 945 20 290 285 300 65 2 1/ 2 65 945 20 290 370 385 70 2 3/ 4 65 945 20 290 440 465 75 ( B) 3 65 945 20 290 490 510 102 ( A) 4 45 655 15 220 610 650 110 ( A) 4 1/ 3 45 655 15 220 785 835
